Quadro Plus
  • Quadro Plus
  • Quadro Plus
  • Quadro Plus

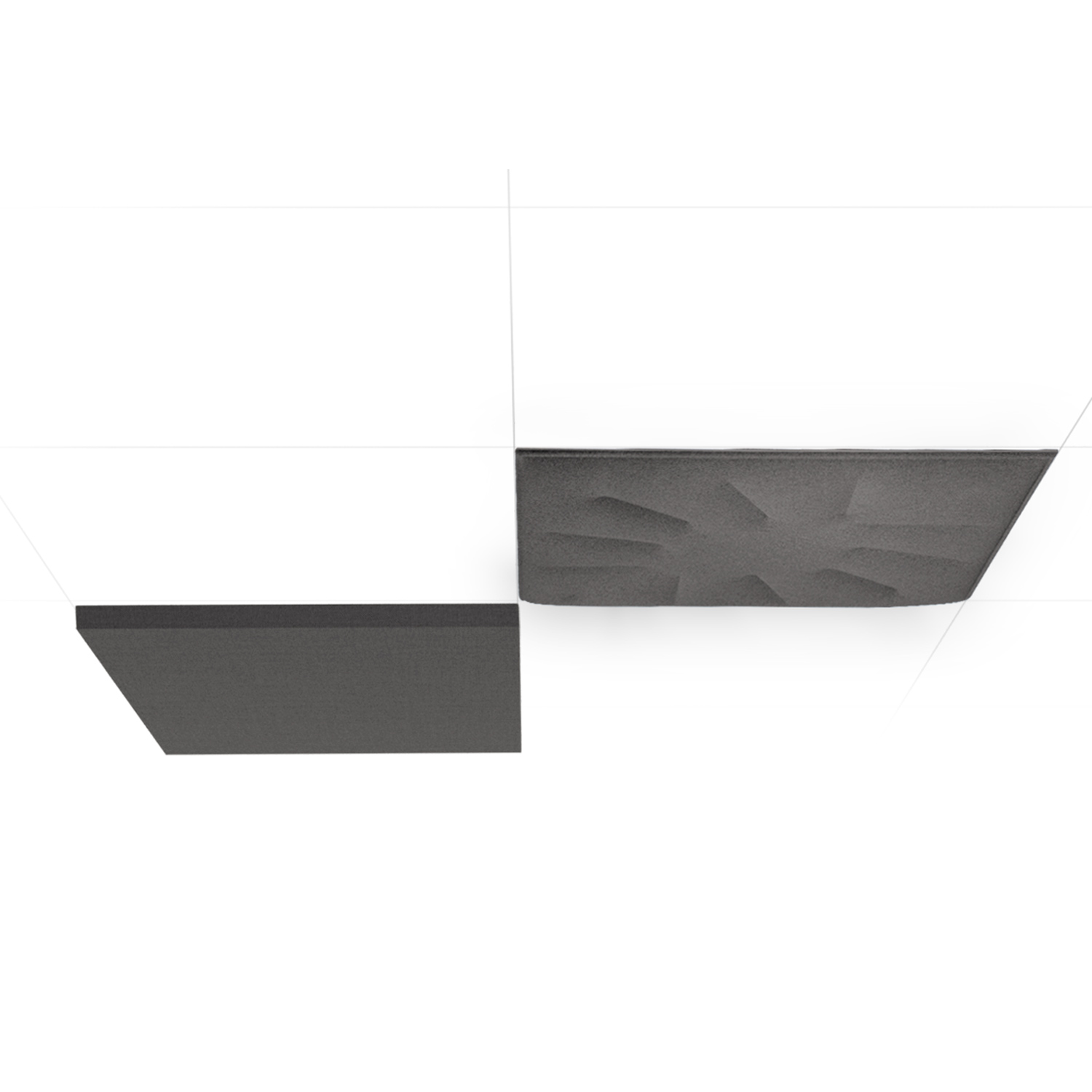

The Phonolook QUADRO Plus panels are ideal for installation in existing or newly built false ceilings, replacing them in place of the existing panels.

They must be positioned using special clips fixed on the perimeter frame, or simply placed according to the type of panel, ensuring rapidity and simplicity of installation and improving the acoustic performance of the environment in which they are to be installed.

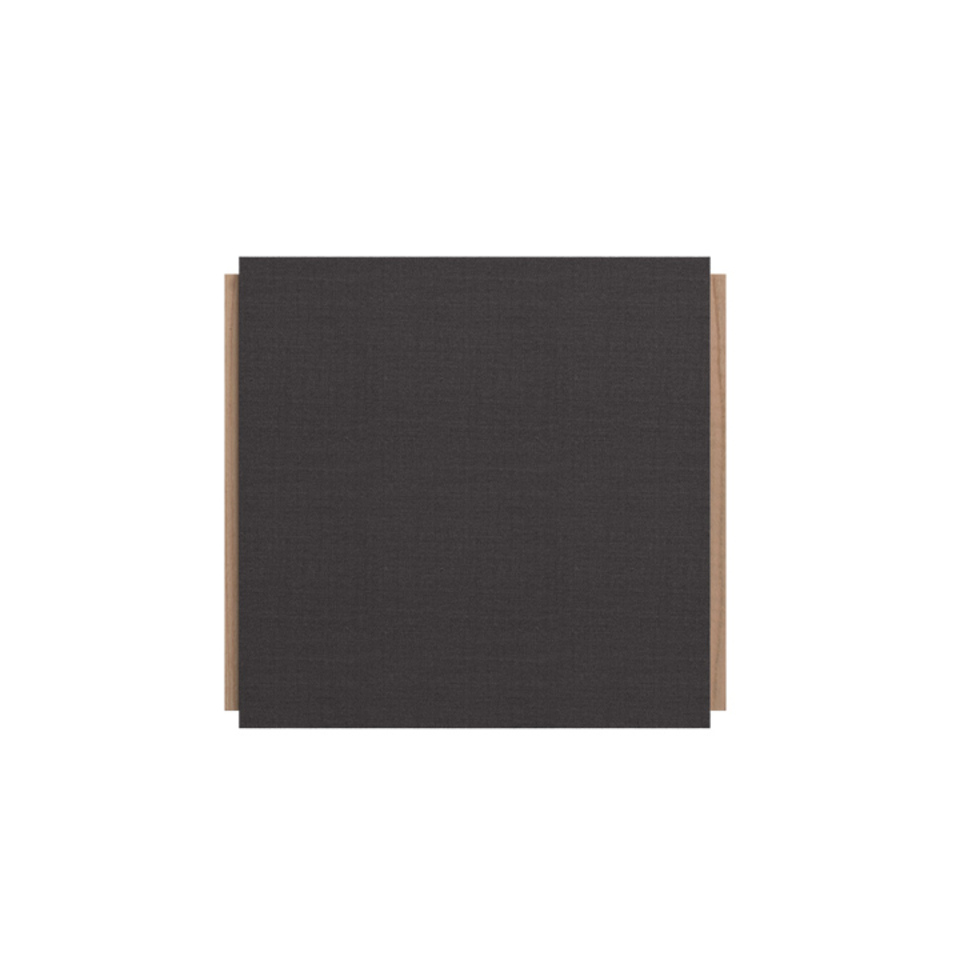

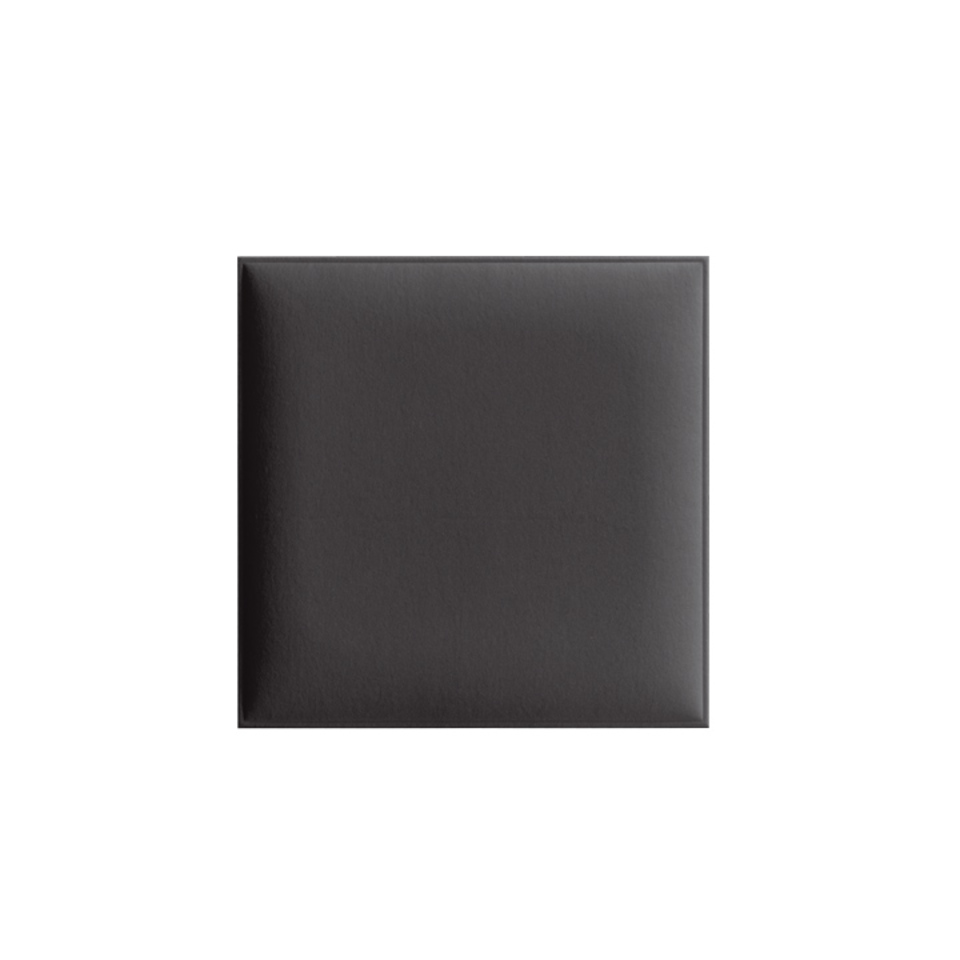

Available in Design, Solution or Fiber version.

PRODUCT

Style Frame Measure Fiber Thickness
Solution Wood L.575 x H.575 30
Solution Wood L.575 x H.575 50
Solution Wood L.575 x H.575 70
Solution Metal L.575 x H.575 30
Solution Metal L.575 x H.575 50
Solution Metal L.575 x H.575 70



NB: Numerical values in the diagram are expressed in mm.







Style Frame Measure Fiber Thickness
Fiber Fiber** L.595 x H.595 45
Fiber Fiber* L.575 x H.575 45
Design Thermoformed fiber L.595 x H.595 15
Design Thermoformed fiber L.595 x H.595 45



* There is a bracket included for hanging in suspension from any false ceiling.

** In support of the existing suspended ceiling.
